Canadiana, Craftsman, Husqvarna, Murray, Noma, Poulan & Sears Parts
Click here for auger gear case diagrams
OR
Other auger parts
Attention Poulan & Husqvarna owners
Most Poulan & Husqvarna part numbers are simply AYP numbers to which they added
531 or 532 in front. For example part number 532 14 65 27 is the same as 146527
Replaces

Size
Order
Drive Train Parts & Gears
7001108
7001108MA
Wheel Lockout Knob
Kit. Comes with shaft,
knob, spring & roll pin
7001108 Knob Kit
$59.99
189282, 178879

1/4" Square Key
189282 Square Key === NLA ===
9465M

Roll Pin
NO LONGER AVAILABLE
1501115
1501115MA
Drive Plate
1501115MA Friction Plate
$99.99
178613
Hub
178613 Hub
$39.99
402869, 420900
401820, 402393

Complete Drive
Plate Assembly
402689 Drive Plate ===NLA===
197763
175341

Plate Assembly
NLA
318719
318719MA
Plastic Wheel for track
drive snow blower
(Not exactly as in
picture)
Diameter: 8-1/2''
9 cogs and 3/4" ID
318719 Drive Wheel === NLA ===
583163
283163YZMA
583163E701
583163E701MA
583163E
583163E717
5831637E717MA
Friction Wheel Disc
Assembly
583163 Friction Wheel Disc Assm.
$179.99
334163
334163MA
ID: 1/2"
Length: 2-5/16"
Width: 1-5/16"
Use with gear 761789
below
334163 Bushing
$19.99
1501125
1501125MA

Gear
1501125 Gear
$69.99
1501067
1501067MA
Gear
1501067MA Chute Gear
$25.99
1501090, 1501090MA
1501237, 1501237MA
1501652, 1501652MA

Shaft with one small
and one large sprocket
32Teeth / 7 Teeth
1501090MA Sprocket
$98.99
161144, 50763

Gear
161144 Gear
$44.99
180065
Pinion Gear
180065 Pinion Gear === NLA ===
180081

Gear
58 teeth
NO LONGER AVAILABLE
180081, 180082
441417, 601001984,
532180081, 187655,
532187655, 532180082,
532184079, 179269X479,
192616X479, 532192616
Gear Kit
Includes intermediate
gear (12/58), axle gear
(58 Teeth) and auxiliary
plate
441417 - 180082 ---NLA---
401619, 401619MA
579867, 579867MA
583013, 583013MA
Roller chain #42
10' length
#42 Roller chain 10'
$36.99
1501233, 1501233MA
579851, 579851MA,
579868, 579868MA,
583013, 583013MA
5917, 5917MA
7060, 401619
Roller chain #420
10' length
#420 Roller Chain 10'
$49.99
1501623
1501623MA
Drive Gear
1501623 Gear
$34.99
1501652
1501652MA

Sprocket Assembly
1501652 Sprocket
$64.99
1737311, 1737311YP

Drive Gear
1737311YP Drive Gear
$39.99
401732
Yoke Shifter
401732 Yoke Shifter
$96.99
402568
Clutch Rod
402568 Clutch Rod === NLA ===
402691

Sprocket
402691 Sprocket
$124.99
437303, 417234, 402855

Sprocket
437303 Shaft & sprocket
$64.99

583007
583007zma
583007MA

Sprocket
583007 Sprocket === NLA ===
583012, 583012MA
Sprocket
583012 Sprocket
$89.99
6215, 6215MA, 53838, 953838,
90053838

Steel gear with
48 teeth
NO LONGER AVAILABLE
761691
761691MA
579893
Gear
761691 Drive Gear === NLA ===
761789
761789MA
Sears 583010
Large gear OD 5 15/16"
with 36 teeth
Small gear OD 1 3/8"
with
7 teeth
761789 Murray Drive Gear
$89.99
1739282, 1739282MA
581773, 53831

Trunion bearing
1739282YP Trunion Bearing
$69.99
175344

Hub
175344 Hub
$36.99
337029
337029MA
Hub
337029 Hub
$69.99
427145
427145MA

Hub
427145 Impeller Hub
$9.99
579901
579901MA

Sprocket
and Hub
579901 Sprocket & hub
$115.99
584593
584593YZMA

Trunnion Bearing
584593 Trunnion
$22.99
708080

Friction Wheel Kit
708080 Friction Wheel Kit === NLA ===
5892
677-5892
5 point mount
for friction disc
5892 HUB FRIC. WHEEL
$44.99
85501
85501MA
Trunion bearing
ID: 1-1/4"
Width: 3-7/8"
Height: 2-7/8"
85501 Murray Bearing
$89.99
780151
780151MA
ID 1"
OD 1 1/4"
780151 Murray Oil Seal
$9.99

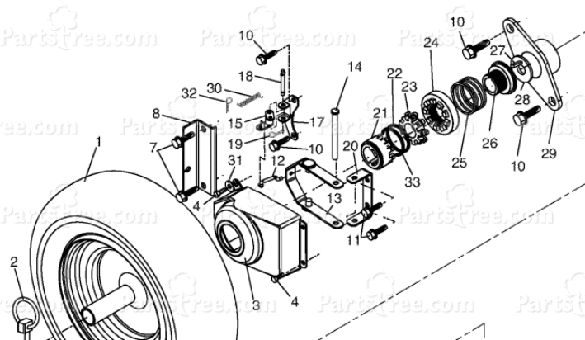

Power Steering Parts
12000045, 812000045

Retainer Ring
12000045 Retainer Ring
$14.99
155443
2
Click Pin
155443 Click Pin
$4.99
179136

Lobe Wheel
179136 Lobe Wheel
$29.99
179137
26
Lobe Axle
179137 Lobe Axle
$24.99
179138

Splined Slide Clutch
179138 Splined Slide Clutch === NLA ===
179139
25
Spring Clutch Side
179139 Spring Clutch Side
$4.99
179141
21
Driver Wheel
179141 Drive Wheel (gear) === NLA ===
179830
29
Bearing
179830 Holder (misc)
$26.99
181847
18
Pin
181847 Pin
$16.99
182015
14
Pin
182015 Pin
$4.99
182226

Pin
182226 Spring
$6.99
182466
22
Ring Wire Retainer
182466 Ring Wire Retainer
$4.99
187263
24
Slide Clutch

184435
30
Spring Return

189282, 178879

Key
189282 Square Key === NLA ===
700279
32
Retainer Clip
700279 Retainer Clip
$6.99
85179
33
Retainer Clip
85179 Retainer Clip === NLA ===
